LYF62001不是款ibms迅速專研和談的更高效、此次雙邊落桿壓SOC

一、貨物簡況

---

1、物質特征 ：

• 輸人電流電壓大小：3.0V-32V
• 輸進交流電壓投資規模：2.0V-30V
• 可程序設計控制開關峰峰值直流電：20A
• 旋轉開關周期：150KHz/300KHz
• 集玉成快充和談、buck-boost充蓄電池充電吃妻上癮器、電壓經由辦好
• 撐持A+C合理利用、模塊化I2C通訊網
• 充電實例3V-4.5V可每10mV增長制定，撐持1-6串充電
• 匹配器防拉死輸出功率VINREG可每10mV依次增加添加
• 顯示顯示直流電壓皮膚返場可每10mA依次增加添加圖片
• 輸入電流電壓可每10mV遞加剪輯
• 撐持欠壓、過壓、過流、燒壞、熱度等保護
• ibmsLDO

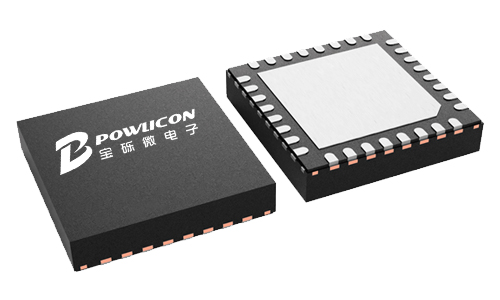

• 封裝類型：QFN5x5-40

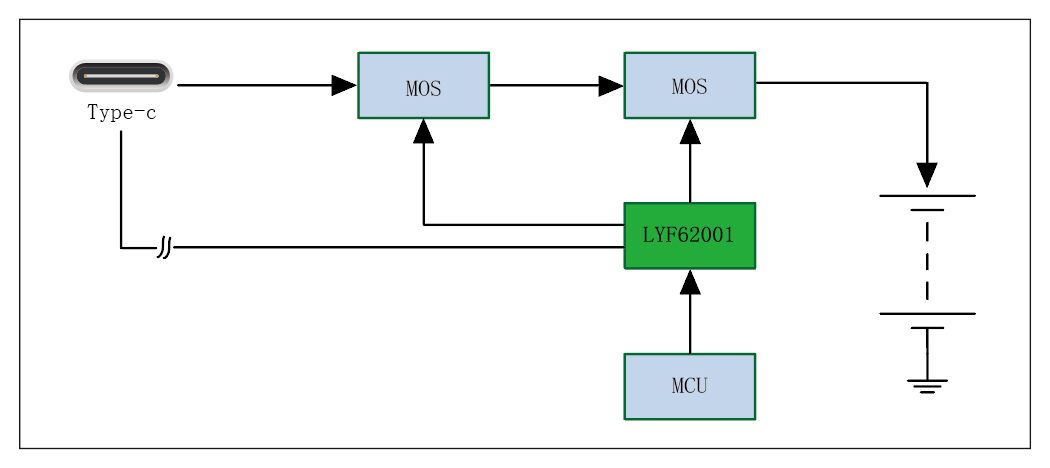

2、利用率原理圖：

3、產品描寫出

LYF62001 is a high efficiency, synchronous bi-directional buck-boost charger with integrated fast charge protocols. It is a comprehensive and flexible buck-boost charger platform designed for most of fast charging applications with type-C port and PD protocol. It can be programmed to buck charging, boost charging or buck-boost charging. LYF62001 provides I2C interface to communicate with MCU, provides high voltage sensing for battery and BUS terminals, accurate rail-rail current sensing for battery current, BUS current and USB ports currents. It also provides high voltage blocking for CC1, CC2, DP, DM communication signals for all of the USB ports. LYF62001 can work with a general MCU to provide a complete, powerful and flexible buck-boost charging system for all kinds of fast charge application such as power bank, battery packs, or portable energy cubic etc. In charging mode, it steps up or down the input voltage to effectively charge the batteries. LYF62001 supports trickle charging, constant current (CC) charging and constant voltage (CV) charging management. The charging current and charging voltage can be programmed by two 12-bit DAC converters. The LYF62001 features I2C interface, so the user can easily control the charging/discharging mode, and program charging current, charging voltage, output voltage, and output current limits through I2C. It also monitors the status of USB ports and provides two NMOS gate drivers to control the power path independently. User can also use I2C to monitor the status of DC-DC, even the whole system. LYF62001 also provides VMON pin, through which the MCU can monitor VBUS, VBAT voltage, IBUS, IBAT current and the current of each port in real time. All these features simplify the system design and reduce BOM cost for any charging system.The LYF62001 supports under voltage protection, over voltage protection, over current protection, short circuit protection and over temperature protections to ensure system safety under different abnormal conditions.

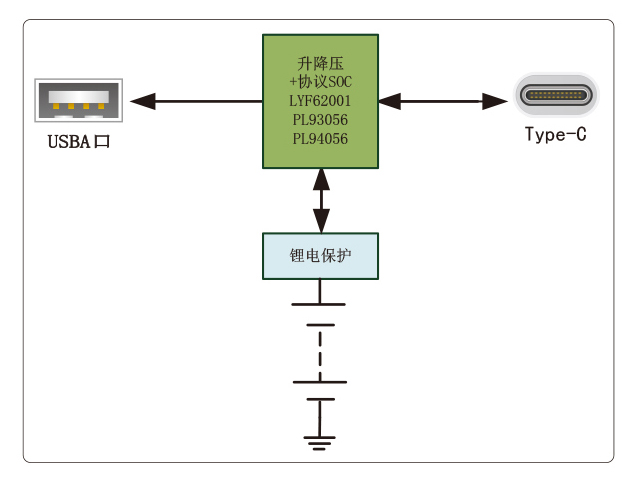

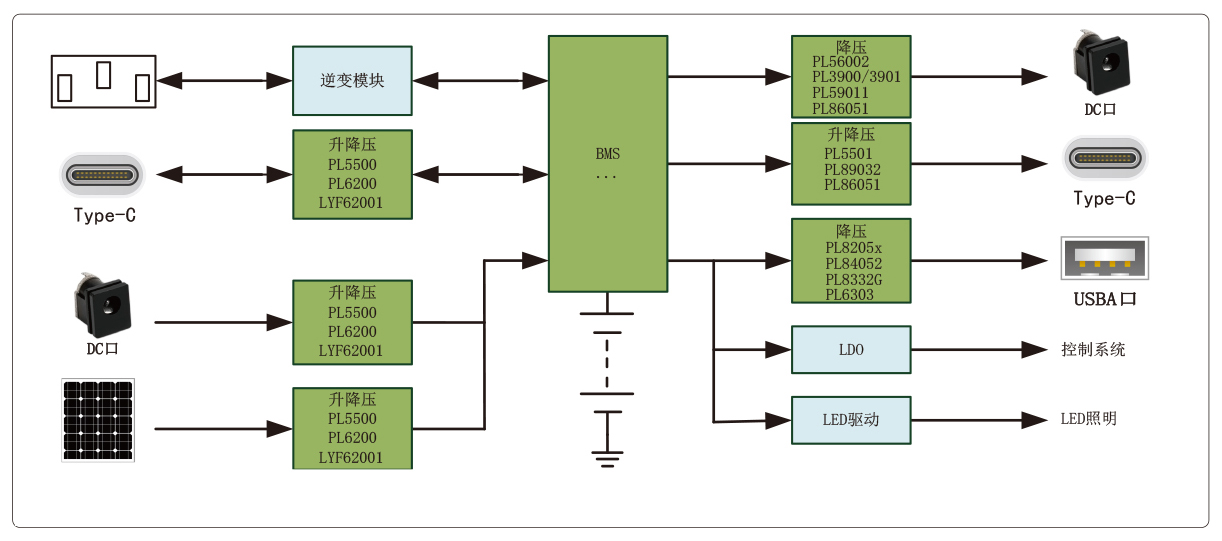

4、杰出借助處景

• 充點寶
• 挪動儲電
• 蓄電池包
• 挪動轉備（如電開方面、筋膜層槍、挪動電器產品等）
• 應急方案開機啟動24v電源
• 智慧USB插座就多留幾個

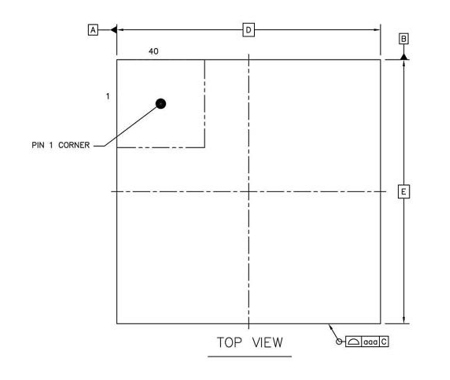

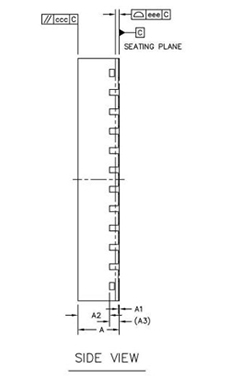

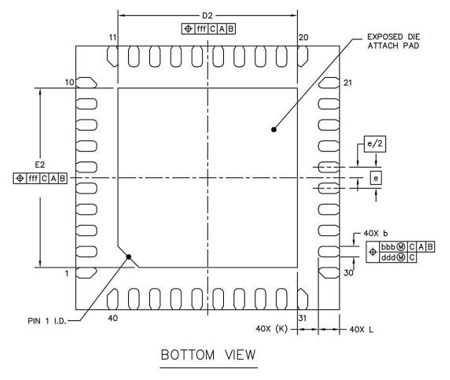

5、封裝類型新信息

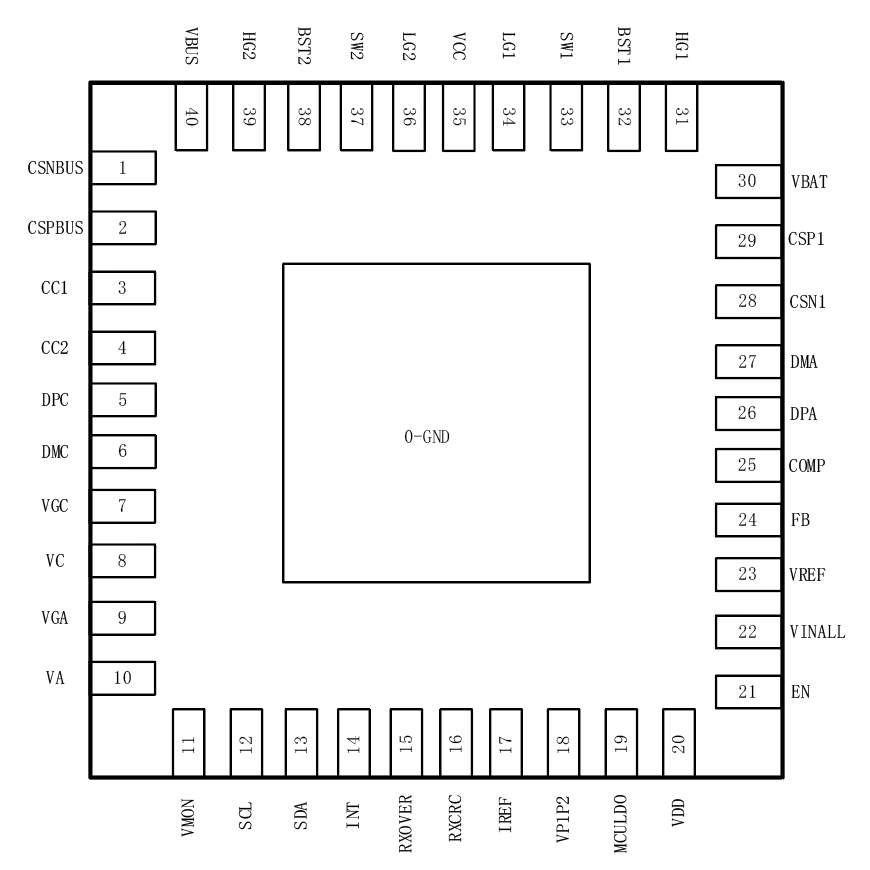

6、管腳界說和副作用刻畫

管腳攻效描寫出

序號	稱號	描寫
1	CSNBUS	Negative input of a current sense amplifier. Connect to one terminal of the current sense resistor.
2	CSPBUS	Positive input of a current sense amplifier. Connect to one terminal of the current sense resistor.
3	CC1	Configuration Channel 1 for C port
4	CC2	Configuration Channel 2 for C port
5	DPC	D+ signal for C port
6	DMC	D- signal for C port
7	VGC	NMOS gate driver to control the external NMOS of C port
8	VC	Used to sense the voltage of C port.
9	VGA	NMOS gate driver to control the external NMOS of A port
10	VA	Used to sense the voltage of A port.
11	VMON	Used to detect VBUS/VBAT voltage, IBUS/IBAT current, and the voltage drop of cut-off MOS for A/C ports. Connect this pin to MCU with a RC filter.
12	SCL	I2C clock line. Connect with a pull up resistor (typical 10kΩ). Connect to MCU
13	SDA	I2C data line. Connect with a pull up resistor (typical 10kΩ). Connect to MCU
14	INT	Open drain output for interrupt signal. Connect to MCU
15	RXOVER	Connect this pin to MCU
16	RXCRC	Connect this pin to MCU
17	IREF	Reference voltage for input and output current limiting loop.
18	VP1P2	1.2V power supply.
19	MCULDO	3.3V voltage output for MCU
20	VDD	Output of internal 5V linear regulator. Connect a 1μF capacitor from VDD pin to GND as close to the IC as possible.
21	EN	Logic High will enable the converter. Logic Low will disable the whole LYF62001. EN is pulled high internally by a 5000kΩ resistor.
22	VINALL	Power supply to the IC. Connect to power rails with low voltage schottky diodes. Place a 1μF capacitor from this pin to GND as close to the IC as possible.
23	VREF	Reference voltage for voltage control loop
24	FB	VBUS voltage feedback.
25	COMP	Error amplifier output and input to the PWM comparator. Connect frequency compensation components to this pin.
26	DPA	D+ signal for A port
27	DMA	D- signal for A port
28	CSN1	Negative input of a current sense amplifier. Connect to one terminal of the current sense resistor in the VBAT side.
29	CSP1	Positive input of a current sense amplifier. Connect to one terminal of the current sense resistor in the VBAT side.
30	VBAT	Battery voltage or Input voltage. Place a 1μF capacitor from this pin to GND as close to the IC as possible.
31	HG1	High side gate driver of switch MOS
32	BST1	Boot-Strap pin Connect a 0.1μF or greater capacitor between SW and BST to power the high side gate driver.
33	SW1	Power Switching pin. Connect this pin to the switching node of inductor.
34	LG1	Low side gate driver of switch MOS
35	VCC	Power supply for high side and low side driver
36	LG2	Low side gate driver of switch MOS
37	SW2	Power Switching pin. Connect this pin to the switching node of inductor.
38	BST2	Boot-Strap pin Connect a 0.1μF or greater capacitor between SW and BST to power the high side gate driver.
39	HG2	High side gate driver of switch MOS.
40	VBUS	Power node of the charger.

二、手工藝表格

---

范例	標題	上傳時候	文檔下載
有機物金橋銅業跨接線的截面積大小書（日文）	LYF62001_Datasheet_en_R1.0	2025/04/09	PDF下載
設想指南	LYF62001 PCB設想指南	2025/04/09	PDF下載

三、充分利用籌劃

---

序號	標題
1	30-100W電開東西充電計劃 30-100W電開東西充電計劃 ×   封閉
2	儲能電源利用計劃 儲能電源利用計劃 ×   封閉
3	充電寶A+C利用計劃 充電寶A+C利用計劃 ×   封閉
